Construction Features:
Engineered for Harvesting Dominance

The industry standard for durability and performance in any condition.

Technical Architecture

Click the hotspots to explore each system.

Rotate device for the full view

Select a feature point to explore

Available
Models

Model Series	Row Spacing	Total Width	Availability
SR30 — Standard	30 in (762 mm)	20 ft – 33 ft	In Stock
SR30 — Narrow	20 in (508 mm)	20 ft – 33 ft	Lead Time: 4 Wks
SR30 — Folding	30 in (762 mm)	30 ft – 33 ft	High Demand

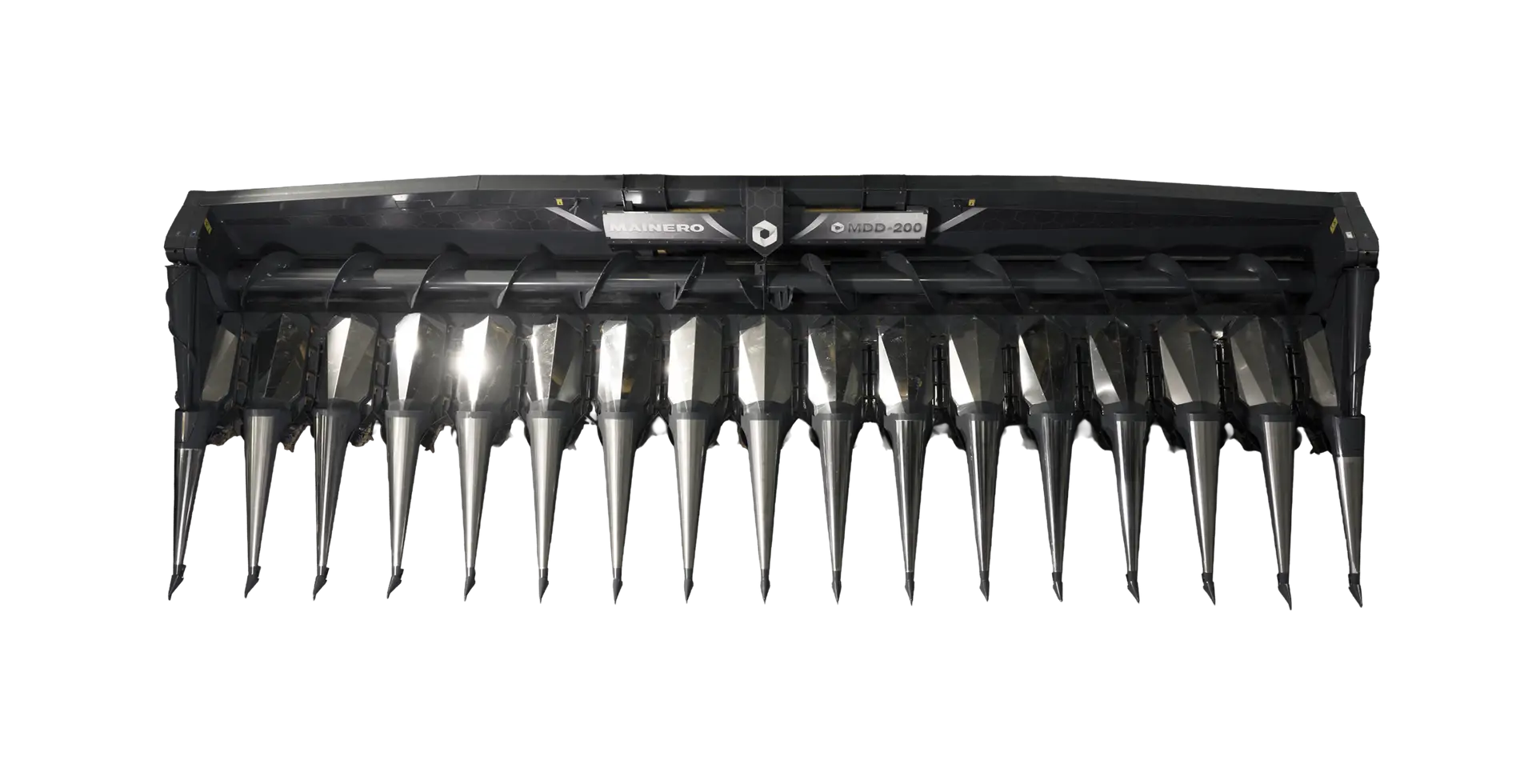

MDD-200 IRT Specifications

Row Independent — all models accept 15″, 20″, 30″ & 36″ row spacings simultaneously without reconfiguration.

Model Configurations

	12Row Units	14Row Units	16Row Units	18Row Units	20Row Units
Working Width	6.096 m 20 ft	7.112 m 23 ft	8.127 m 27 ft	9.144 m 30 ft	10.160 m 33 ft
Rows Harvested Per Spacing
15″ / 380 mm	16	18	21	24	26
20″ / 508 mm	12	14	16	18	20
30″ / 760 mm	8	9	10	12	13
36″ / 910 mm	6	7	8	10	11
Weight	2,650 kg 5,840 lb	3,100 kg 6,834 lb	3,600 kg 7,940 lb	3,960 kg 8,730 lb	4,365 kg 9,625 lb

Mechanical Specifications

Drive: 60° free-rotation yoke PTO. ASA 80H oil-bath roller chain with auto-tensioner.
Gearboxes: Oil bath.
Row Unit Safety Clutch: One per row unit. Preloaded. Non-adjustable.
Stalk Roll Mounting: Maintenance-free bearing with self-aligning ball joint at front end support.
Stalk Roll Blades: Eight ¼″ thick hardened opposing serrated replaceable blades, bolted to shaft.
Snapping Plates: Hydraulically adjustable.
Gathering Chains: CA2801 — 66 pitches. 11 conveying lugs.
Auger Drive: Dual independent drive with central support.
Auger Speed: 140 rpm.
Auger Mounting: Hex shaft on spherical bearings. Adjustable.
Auger Safety Clutch: One per drive. Preloaded. Non-adjustable.
Snouts & Shields: Stainless steel.
Side Augers: Standard feature. Mechanical drive. Shear pin protection.

Specifications and design subject to change without notice.

Included with every header

Spare Parts Kit

Every new MDD-200 ships with a complete kit of wear-and-tear components — ready to keep you running through harvest season.

Standard Equipment

What’s in the Kit

Twelve wear-and-tear components — snouts, hoods, drive parts, and hardware — packed with every new header so you’re ready to swap when the season starts.

Retail Value

$6,700

Included at no extra cost

Request a Quote

Snouts & Hoods

LH end snout ×1
RH end snout ×1
Center snout ×2
Snout support ×2
Center hood ×2
Hood hinge ×2

Drive & Hardware

Gathering chain ×2
Drive sprocket ×1
Idler sprocket ×1
Clutch ×1
Scissor lock ×1
End cover gasket ×2
